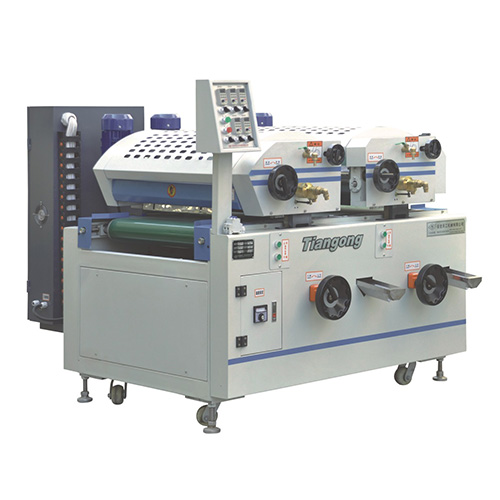

Double Roller Coating Machine
Product Details：
Main features：
1. Coating is evenly by the use of frequency conversion, saving time and effort.
2. Equipped with two sets UV coating rollers, It can be used simultaneously or separately.
3. Easy to replace the UV coating rollers by unscrewing the set screw of it, saving time and effort.
4. UV lacquer can be reclaimed quickly and easily;
5. Feeding speed can be adjusted with the coating speed, near synchronous line speed.
6. Suitable for coating wood, plywood, plastic, windows, rubber sheet and other square board, rectangle board, etc.
600#
Effective processing width 600mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 0.75kw
Delivery power 0.75kw
Outlook size L*W*H 1600*2000*1550mm
1000#
Effective processing width 1000mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 1.5kw
Delivery power 1.5kw
Outlook size L*W*H 1600*2450*1550mm
1300#
Effective processing width 1300mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 1.5kw
Delivery power 1.5kw
Outlook size L*W*H 1600*2750*1550mm
