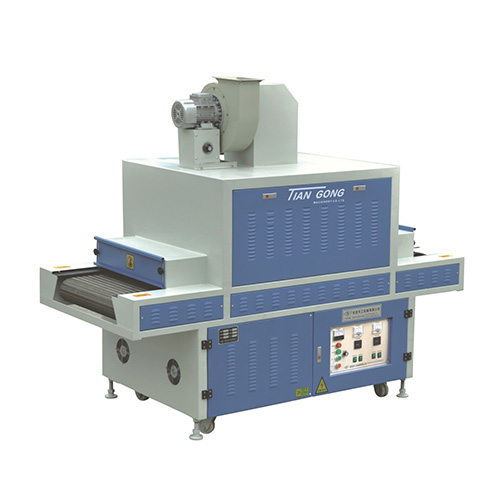

Old Style Dual-lamp UV dryer
Product Details：
Main features：
1. Instant drying: Shorten the coating process time greatly without the waiting time for drying.
2. Match with the coating machine directly: Thic machine can be connected to a roller coating machine or curtain coating machine, The finished product can be dried directly after coating and without the hassle of transporting.
3. Increase the hardness and brightness of the coated product surface.
4. Widely range of applications: Drying for Wood, plywood, furniture, steel palte, building materials, optic, leather after UV coating.
600#
Effective processing width 600mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 6kw*2
Delivery power 0.4kw
Outlook size L*W*H 2300*1050*1600mm
1000#
Effective processing width 1020mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 8kw*2
Delivery power 0.75kw
Outlook size L*W*H 2300*1350*1800mm
1300#
Effective processing width 1300mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 9.7kw*2
Delivery power 0.75kw
Outlook size L*W*H 2300*1650m1800mm
