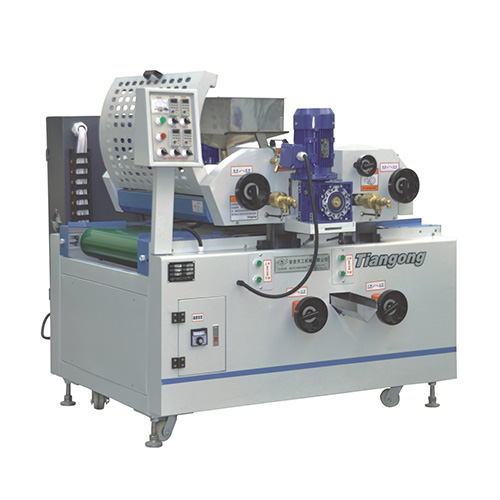

Light Duty Putty Coating Machine
Product Details：
Main features：
1. Used for filling plates or MDF with Water-based or UV light curing filler.
2. Can achieve a smooth effect by filling the board pores, scraping away the excess lacquer and recycling it. so as to enhance the production efficiency greatly.
3. Each uniform wheel, tire, conveying belt and fill&scrape wheel was controlled by an independent Converter Motor, which raise the coating effect greatly. Floating fill system can adapt to subtle thickness differences of the workpiece, The constant down pressure of fill and scrape wheel further to improve the filled effect of plates.
4. Conveying belt can resistant various sollvents coatings and to prevent slipping phenomenon.
600#
Effective processing width 600mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 1.5kw
Electric light wheel power 0.75kw
Delivery power 0.75kw
Outlook size L*W*H 1600*1850*1500mm
1000#
Effective processing width 1000mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 1.5kw
Electric light wheel power 0.75kw
Delivery power 0.75kw
Outlook size L*W*H 1600*2300*1500mm
1300#
Effective processing width 1300mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Rubber wheel power 1.5kw
Electric light wheel power 0.75kw
Delivery power 0.75kw
Outlook size L*W*H 1600*2600*1500mm
