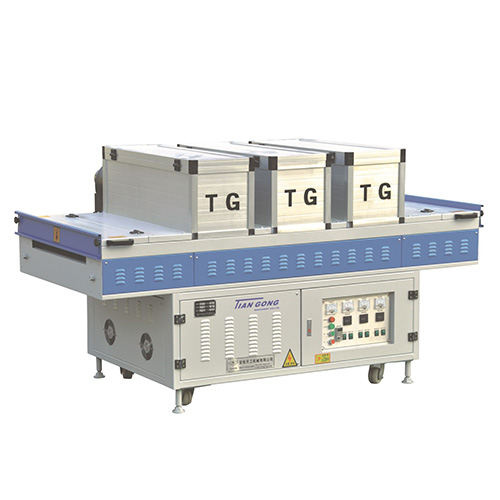

New Style Three-lamp UV Drywer
Product Details：
Main features:
1. Widely used for instant drying of UV coatings on the general flat articles.
2. The inside of lamp house is well -ventilated which prolongs the service life of UV lamp, transformers and capacitors effectively.
3. Anti-ultraviolet shielding plate was installed at the inlet, outlet and side place to isolate the ultraviolet radiation leakage effectively.
4. Professional conveying device prolongs the service life of the conveying belt and ensure the brightness of the lacquered workpiece.
5. The operating procedures and UV operation status is displayed on the screen directly with integrated HMI operator panels, It's easy to operate and monitor the complete UV system work.
600#
Effective processing width 600mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 6kw*3
Delivery power 0.4kw
Outlook size L*W*H 1800*1450*1500mm
1000#
Effective processing width 1000mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 8kw*3
Delivery power 0.75kw
Outlook size L*W*H 1800*1850*1600mm
1300#
Effective processing width 1000mm
Effective processing thickness 3-80mm
Min process length 300mm
Delivery speed 5-20m/min
Light tube power 9.7kw*3
Delivery power 0.75kw
Outlook size L*W*H 1800*2150*1600mm
